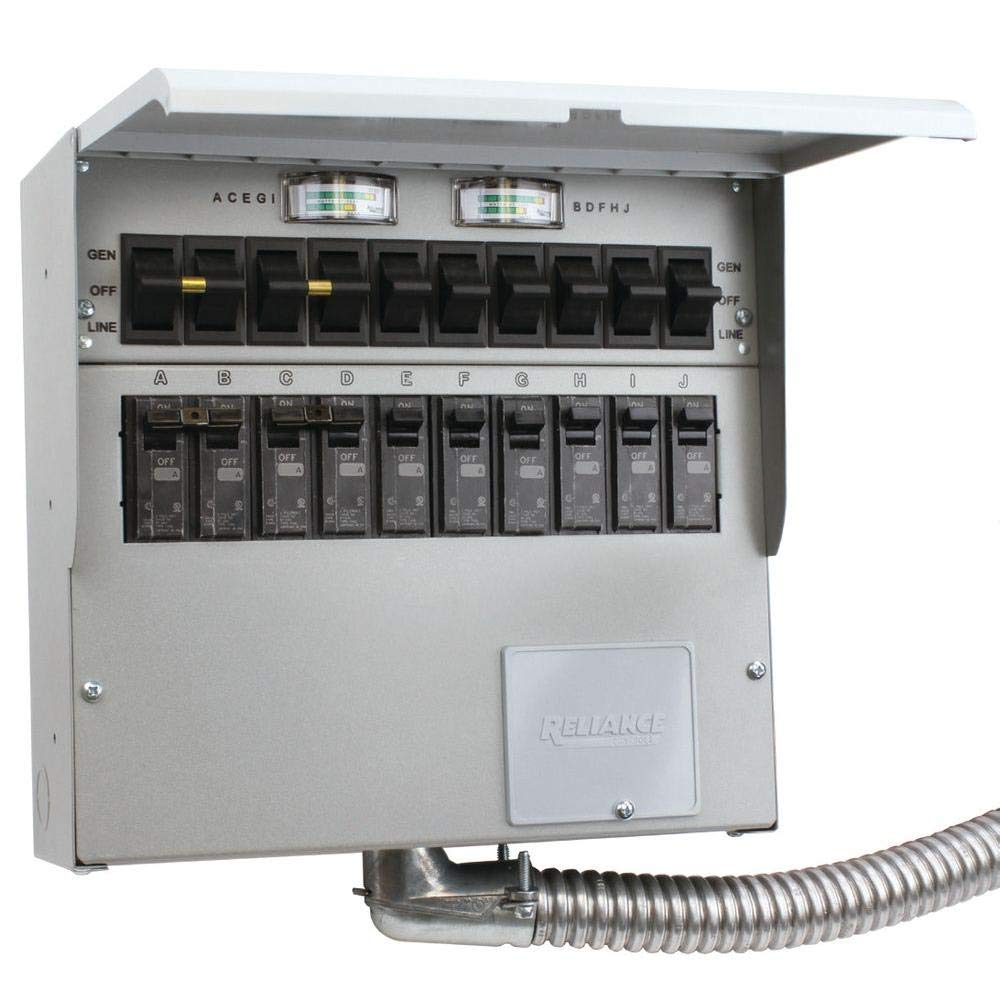

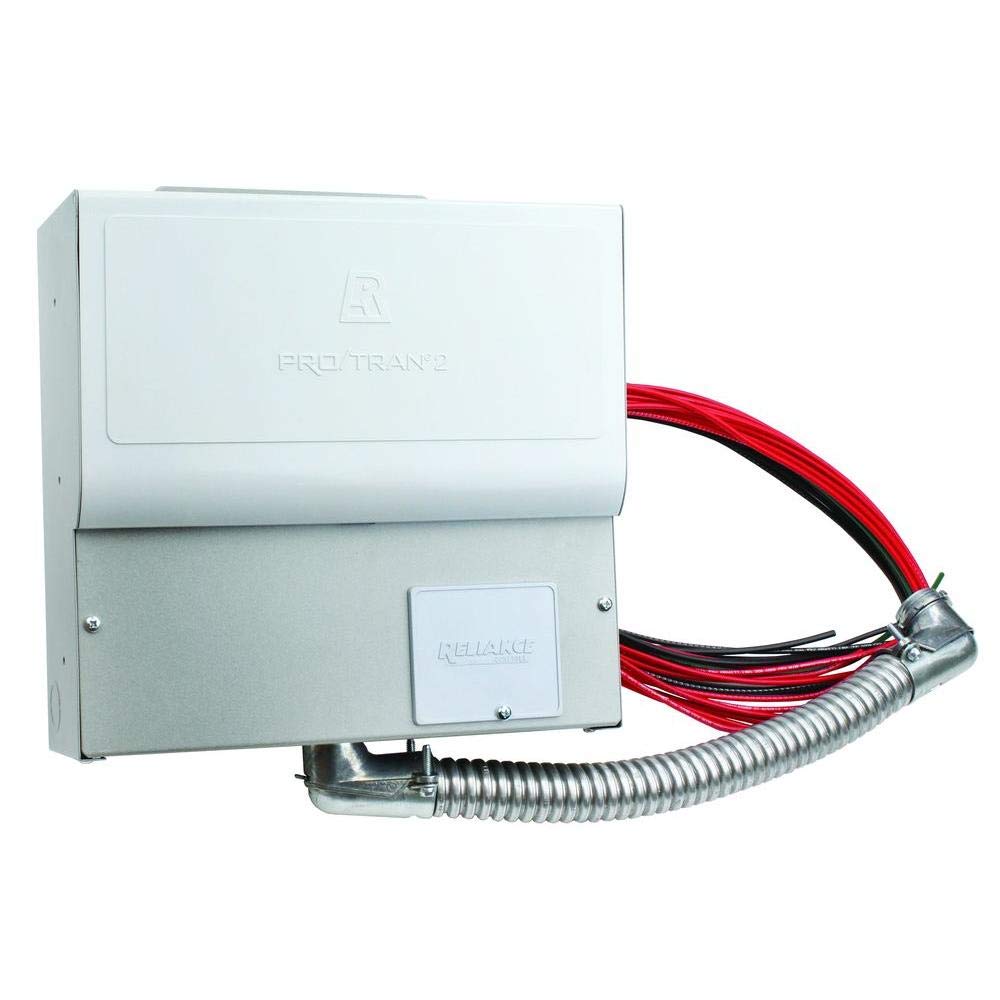

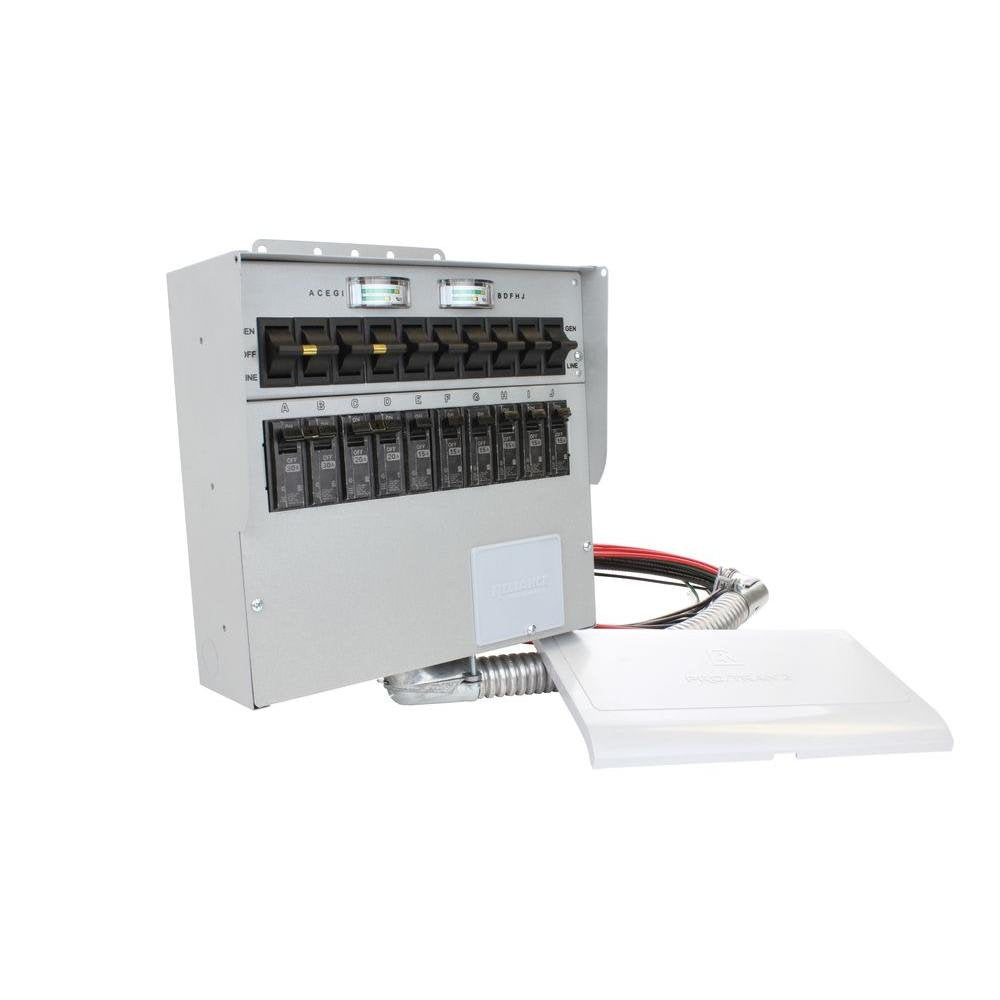

A510C Pro/Tran2 50-Amp 10-Circuit 2 Manual Transfer Switch

A510C Features: -Pro/Tran 2 series is UL listed to UL standard 1008 and is suitable for use in accordance with article 702 of the national electrical code ANSI/NFPA 70. -Made in the USA. Country of Manufacture: -United States. Product Type: -Transfer switch cover. Hardware Finish: -Painted steel cabinet. Finish: -Steel. Dimensions: Overall Height - Top to Bottom: -11.25'. Overall Width - Side to Side: -11.75'. Overall Depth - Front to Back: -4.5'. Overall Product Weight: -19 lbs.

Features & Specs

• Actuator Type : Hinge Lever
• Circuit Type : mixed (single-pole and double-pole)
• Connectivity Protocol : X-10
• Connector Type : Screw Terminal
• Contact Type : Normally Open
• Control Method : Remote
• Current Rating : 50 Amps
• Mounting Type : Surface Mount
• Number of Positions : 10
• Operating Voltage : 240 Volts
• Operation Mode : Manual
• Switch Type : Hinge Lever
• Terminal : Normally Open
• Wattage : 12500 watts

Item details

• ASIN : B00YCRLLMI
• Brand Name : Reliance Controls
• Item Weight : 18 Pounds
• Manufacturer : Reliance Controls
• Model : A510C
• Part Number : A510C
• UPC : 815181012236

Materials & Care

• Contact Material : Brass
• Material Type : Alloy Steel

Measurements

• Item Dimensions : 11.75 x 4.5 x 11 inches
• Number of Items : 1
• Unit Count : 1 Count

User guide

• International Protection Rating : IP54
• Specification Met : UL
